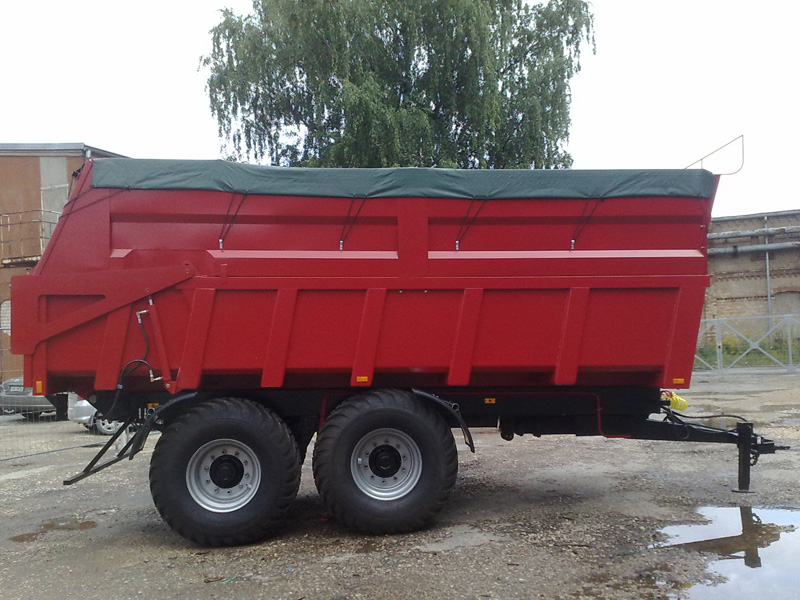

LMR-18/20
Specifications
| Load-carrying capacity (ton) |
18/20 |
| Body capacity (cubic m) |
10,5 |
| Body capacity with exstension body sides(cubic m) |
24 |
| Mass (kg) |
5750 |
| Maximum speed (km/h) |
40 |
| Overall dimensions, (mm): |
| length |
7110 |
| width |
2550 |
| height |
3140 |
| Inner dimensions of body, (mm): |
| length |
5425 |
| width |
2420 |
| height with main body sides |
800 |
| height with exstension body sides |
1700 |
| Body lifting angle backwards (deg) |
50 |
| Number of cylinders |
1 |
| Wheel suspension |
tandem |
| Tyre size |
600/50-22.5 16 PR |
| Track (mm) |
1950 |
| Brakes |
406x120 |
| Brakes drive |
hydraulic or (and) pneumatic |
| Drawbar |
sprung |
| Drawbar support |
jack with adjustable height |
| To be attached to tractors with power (kW) |
130-160 |
|
